Unit Price (€ / pc.)
7.9135 € *
Available: 0 pcs.
Leadtime: On Request **

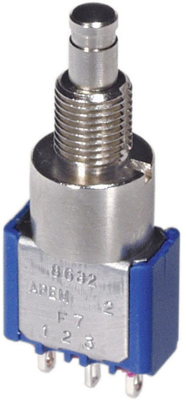

Miniature pushbuttons and switches, type APEM 8000.
Bushing mount; Contacts: silver. Breaking capacity: 3.0 A/250 VAC.6.0 A/125 VAC, 4.0 A/30 VDC. Contact resistance (new condition): max. 10 mohm. Insulation resistance: 1000 Mohm on 500 VDC. Dielectric strength between terminals: 1000 VRMS/50 Hz. Stroke : 2.7 mm. Actuating torque: max. 1.25 N/m. Operating temperature: - 40 to +85 °C.
With straight solder pins.
Technical attributes (type, number of poles, make action (ON), momentary on (M), contact version): 8432A, single-pole, ON-M, silver
Technical specifications
| Connection | solder lug | |
| Design | round | |
| Printed | No | |
| illuminated | No | |
| Installation diameter | 6.5 mm | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Vandal-proof | No |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
