FDAP3D1482F15 | APEM
Pushbutton, 1 pole, black, illuminated (red/green), 0.2 A/12 V, mounting Ø 24.2 mm, IP69K, FDAP3D1482F15
Unit Price (€ / pc.)
38.7107 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

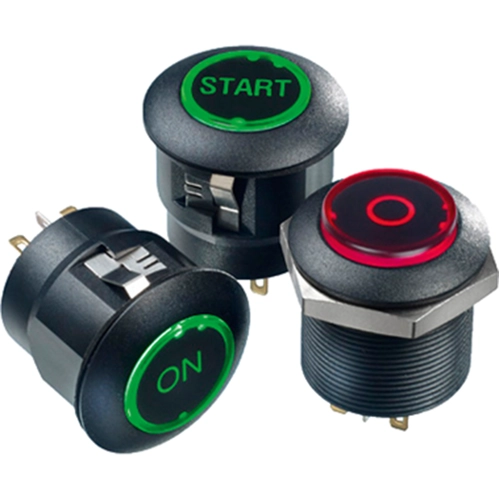

Pushbuttons with silver contacts, gold-plated
with electable integrated icons and illumination colors. Thread socket assembly (Snap in mounting on inquiry).
Breaking capacity: 200 mA 12 VDC (gold-plated contacts)
Contact resistance: max. 50 mohm (new state)
Insulation resistance: 1.0 Gohm on 500 VDC
Degree of protection: threaded bushing IP 69K
Ambient temperatures: max. - 40 °C to +75 °C
Technical attributes (type, switching function, icons and colors): FDAP3D1482F15, A - M, "I" green, "O" red
Technical specifications
| Connection | Lötöse | |
| Design | rund | |
| Printed | Yes | |
| illuminated | Yes | |

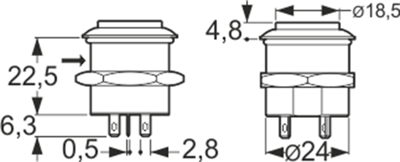

| Installation diameter | 24.2 mm | |
| Actuator colour | schwarz | |
| Farbe der Beleuchtung | rot/grün | |
| contact surface | vergoldet | |
| Pin number | 1-polig | |
| Latching switching function | tastend | |
| Breaking capacity | 0,2 A/12 V | |
| Protection class | IP69K |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
