IPR3SAD2L0S | APEM
Pushbutton, 1 pole, black, illuminated (red), 5 A/28 VDC, mounting Ø 13.6 mm, IP67, IPR3SAD2L0S
Unit Price (€ / pc.)
19.1590 € *
Available: 0 pcs.
Leadtime: On Request **

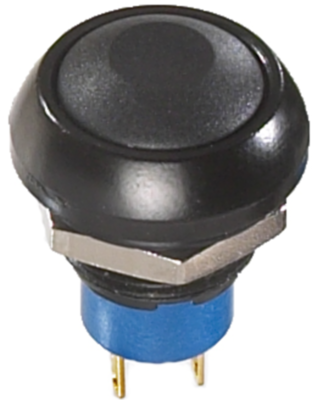

Panel switch, IPR3SAD2L0S, APEM
The IPR3SAD2L0S is a round curved, giving it a sleek and ergonomic design. In terms of electrical functions, it is normally open (NO), allowing for easy activation and deactivation. The contacts of this switch are silver gold-plated standard, ensuring reliable and durable performance.
Features
- Tactile feedback
- Wide variety of configurations
- Flat round actuator for optional marking
Technical specifications
| Connection | solder connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 13.6 mm | |
| Actuator colour | black | |
| Farbe der Beleuchtung | red | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 5 A/28 VDC | |
| Protection class | IP67 | |
| Vandal-proof | Yes | |
| Wall thickness | 1.5-4 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
