IXP3S02GRXCD | APEM
Pushbutton, 1 pole, black, illuminated (green), 0.1 A/28 V, mounting Ø 15.5 mm, IP67/IP69K, IXP3S02GRXCD
Unit Price (€ / pc.)
24.5735 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

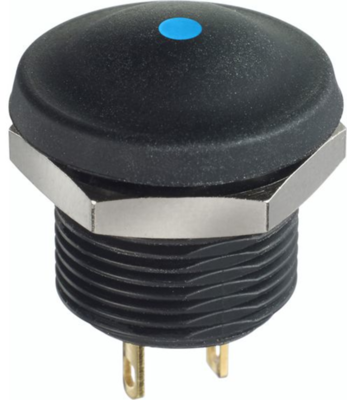

Pushbutton, IXP3S02GRXCD, APEM
Pushbutton NO, Solder lugs, Gold plated, Illuminated point (Green), black actuator
Features
- Backlighted marking in a compact case
- Strong tactile feedback
- NO or NC/NO
- High sealing level, no space between actuator and bushing (IP67/IP69K)
Technical specifications
| Connection | Lötanschluss | |
| Design | rund | |
| Printed | Yes | |
| illuminated | Yes | |
| Installation diameter | 15.5 mm | |
| Actuator colour | schwarz | |
| Farbe der Beleuchtung | grün | |
| contact surface | vergoldet | |
| Pin number | 1-polig | |
| Latching switching function | tastend | |
| Breaking capacity | 0,1 A/28 V | |
| Protection class | IP67/IP69K |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
