IXP3W11W | APEM
Pushbutton, 1 pole, blue, illuminated (white), 2 A/28 V, mounting Ø 11.9 mm, IP67/IP69K, IXP3W11W
Unit Price (€ / pc.)
27.37 € *
Standard delivery time from the manufacturer is: 14 Weeks

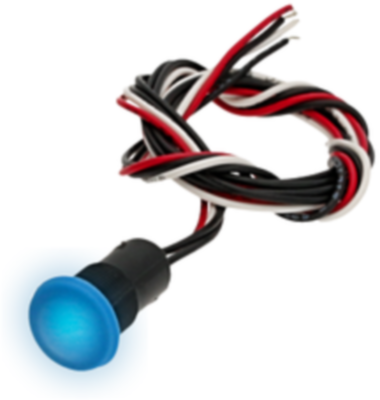

Panel switch, IXP3W11W, APEM
The IXP3W11W it features a round elastomeric membrane actuator type, providing a comfortable and responsive tactile feedback. With its normally open (NO) electrical function, it allows for easy circuit control. The contacts of this switch are made of silver, ensuring reliable and efficient electrical conductivity. Whether for industrial or consumer applications, the IXP3W11W panel switch is a versatile and high-performing choice.
Features
- Backlighted marking in a compact case
- Strong tactile feedback
- High sealing level, no space between actuator and bushing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | blue | |
| Breaking capacity | 2 A/28 V | |
| illuminated | Yes | |
| Farbe der Beleuchtung | white | |
| Printed | No | |
| Connection | wire connection | |
| Design | round | |
| contact surface | silver-plated | |
| Installation diameter | 11.9 mm | |
| Protection class | IP67/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
