Q12P1CXXB24E | APEM

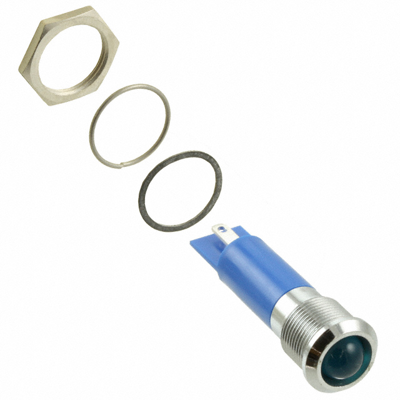

LED signal light, 24 V (DC), blue, 800 mcd, Mounting Ø 12 mm, pitch 2.54 mm, LED number: 1, Q12P1CXXB24E
LED-Signal lamp, Q12P1CXXB24E, APEM
The Q12P1CXXB24E LED Indicator is designed to provide clear and reliable visual indication in various applications. With a mounting hole diameter of 12mm, it can be easily installed in your desired location. The prominent bezel style adds a sleek and modern touch to the overall design. Equipped with solder lug fastons 28 x 08 terminals, it ensures secure and stable connectivity. The bright chrome bezel finish enhances its durability and resistance to wear and tear. With fixed blue illumination, it offers a vibrant and eye-catching display. Operating at a voltage of 24 VDC, it provides efficient and consistent performance. Additionally, its IP67 sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
| Connection | solder connection/2.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 8 mm | |
| Installation diameter | 12 mm | |
| Farbe der Beleuchtung | blue | |
| Luminous intensity | 0.8 cd | |
| Assembly | PCB mounting | |
| Rated voltage (DC) | 24 V | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
| Country of origin | GB |
| Customs tariff number | 85414100 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
