Q14F1CXXW24E | APEM
LED signal light, 24 V (DC), white, 20 mcd, Mounting Ø 14 mm, pitch 1.25 mm, LED number: 1, Q14F1CXXW24E
Unit Price (€ / pc.)
9.3058 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.31 € *
Price list
Quantity
Price per unit*
25 pcs.
9.3058 €
50 pcs.
8.7465 €
100 pcs.
8.1991 €
500 pcs.
7.6517 €
*incl. VAT plus shipping costs
**Subject to prior sale

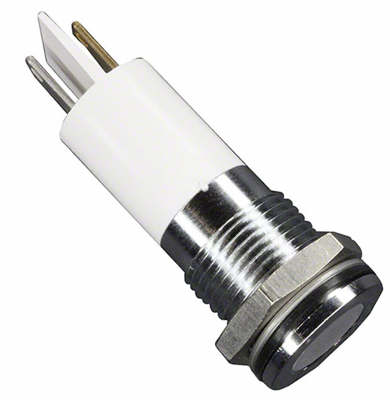

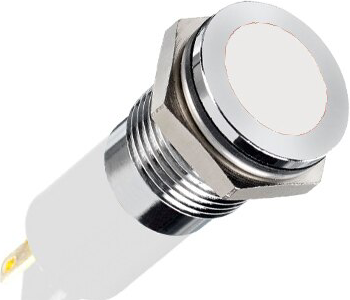

LED-Signal lamp, Q14F1CXXW24E, APEM
The Q14F1CXXW24E LED Indicator is designed with a 14mm mounting hole, making it easy to install. Its flush bezel style seamlessly integrates into any panel. The indicator features solder lug fastons 28 x 08 terminals, ensuring a secure connection. With a bright chrome bezel finish, it adds a touch of elegance to your application. The fixed light illumination provides a consistent and reliable indication. The white LED color offers excellent visibility. Operating at a voltage of 24 VDC, this indicator is suitable for a wide range of applications. Additionally, its IP67 sealing ensures protection against dust and water, making it durable and reliable in challenging environments.
Technical specifications
| Connection | solder connection/2.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 9.5 mm | |
| Installation diameter | 14 mm | |
| Farbe der Beleuchtung | white | |
| Luminous intensity | 0.02 cd | |
| Assembly | PCB mounting | |
| Rated voltage (DC) | 24 V | |
| Rated current | 20 mA | |
| Grid | 1.25 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
