Q8F1CXXG24E | APEM
LED signal light, 24 V (AC), 24 V (DC), green, 10 mcd, Mounting Ø 8 mm, pitch 1.25 mm, LED number: 1, Q8F1CXXG24E
Unit Price (€ / pc.)
5.2836 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.28 € *
Price list
Quantity
Price per unit*
100 pcs.
5.2836 €
500 pcs.
4.9266 €
*incl. VAT plus shipping costs
**Subject to prior sale

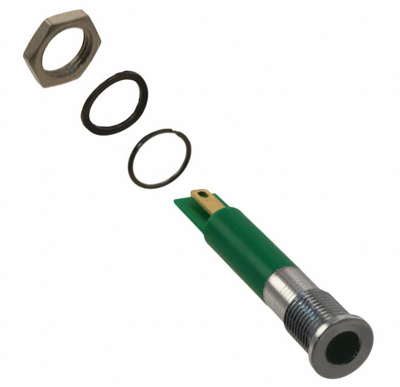

LED-Signal lamp, Q8F1CXXG24E, APEM
The Q8F1CXXG24E LED Indicator is a versatile and reliable component designed for various applications. With an 8 mm mounting hole, it can be easily installed in different systems. Its flush bezel style adds a sleek and modern touch to any design. The indicator features solder lug fastons terminals, providing a secure and efficient connection. The bright chrome bezel finish enhances its durability and aesthetic appeal. With fixed green light illumination, it offers clear and visible indication. Operating at a voltage of 24 VDC, it is suitable for a wide range of power systems. Additionally, its IP67 sealing ensures protection against dust and water, making it suitable for outdoor and industrial environments.
Technical specifications
| Connection | solder connection/2.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Farbe der Beleuchtung | green | |
| Luminous intensity | 0.01 cd | |
| Assembly | central Mounting | |
| Rated voltage (AC) | 24 V | |
| Rated voltage (DC) | 24 V | |
| Rated current | 20 mA | |
| Grid | 1.25 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
