QS101XXG24 | APEM
LED signal light, 24 V (DC), green, 0.06 cd, Mounting Ø 10 mm, LED number: 1, QS101XXG24
Unit Price (€ / pc.)
2.6537 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
100 pcs.
2.6537 €
500 pcs.
2.4990 €
1000 pcs.
2.3205 €
*incl. VAT plus shipping costs
**Subject to prior sale

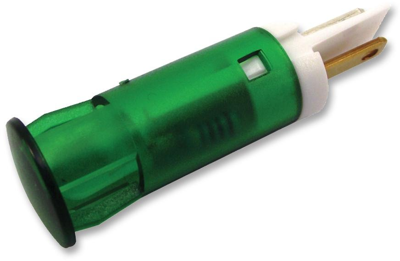

LED-Signal lamp, QS101XXG24, APEM
The QS101XXG24 is an LED indicator with a 10 mm mounting hole. It features solder lug fastons for terminals and emits a fixed green light. Operating at a voltage of 24 VDC, it is suitable for various applications.
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Installation diameter | 10 mm | |
| Farbe der Beleuchtung | green | |
| Luminous intensity | 0.06 cd | |
| Assembly | snap-in | |
| Rated voltage (DC) | 24 V | |
| Rated current | 20 mA |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
