25136NAH | APEM

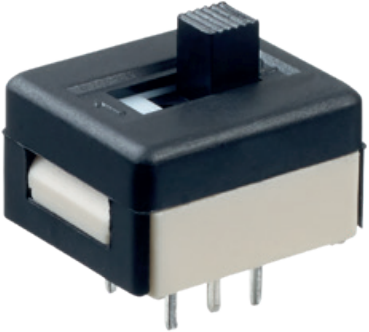

Slide switch, On-On, 1 pole, straight, 1 A/30 VDC, 25136NAH
Unit Price (€ / pc.)
3.8675 € *
Available: 115 pcs.
Leadtime: 12 Weeks **
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.4034 €
100 pcs.
2.9750 €
250 pcs.
2.8679 €
1000 pcs.
2.6894 €
*incl. VAT plus shipping costs
**Subject to prior sale
Slide switches, type APEM 25000N.
For PCB mounting, top raised actuator; Material housing base: PBT. Housing top and actuator: polyamide, glass fiber-reinforced. Contacts: silver. Breaking capacity: 1.0 A/30 VDC. Insulation resistance: min. 1000 Mohm on 500 VDC. Operating temperatures: - 40 to +85 °C.
With top raised actuator, type 251.
Technical attributes (type, number of poles, switching actions OFF, ON): 25136NAH, single-pole, ON-ON
Technical specifications
| Connection | PCB pin | |
| Version | slide switch | |
| Design | straight | |
| Actuation | on top | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 1 A/30 VDC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
