25139NAH | APEM

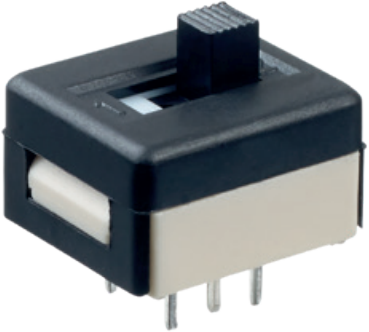

Slide switch, On-Off-On, 1 pole, straight, 1 A/30 VDC, 25139NAH
Unit Price (€ / pc.)
3.8318 € *
Available: 555 pcs.
Leadtime: 16 Weeks **
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.3796 €
100 pcs.
2.9512 €
250 pcs.
2.8441 €
1000 pcs.
2.6656 €
*incl. VAT plus shipping costs
**Subject to prior sale
Slide switches, type APEM 25000N.
For PCB mounting, top raised actuator; Material housing base: PBT. Housing top and actuator: polyamide, glass fiber-reinforced. Contacts: silver. Breaking capacity: 1.0 A/30 VDC. Insulation resistance: min. 1000 Mohm on 500 VDC. Operating temperatures: - 40 to +85 °C.
With top raised actuator, type 251.
Technical attributes (type, number of poles, switching actions OFF, ON): 25139NAH, single-pole, ON-OFF-ON
Technical specifications
| Anschluss | Leiterplattenstift | |
| Ausführung | Schiebeschalter | |
| Bauform | gerade | |
| Betätigung | oben | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 1-polig | |
| Rastermaß | 2.54 mm | |
| Schaltleistung | 1 A/30 VDC | |
| Schaltstellung | Ein-Aus-Ein |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
