12159A | APEM
Toggle switch, metal, 3 pole, latching, On-Off-On, 4 A/125 VAC, 30 VDC, silver-plated, 12159A
Unit Price (€ / pc.)
42.1498 € *
Available: 0 pcs.
Leadtime: On Request **

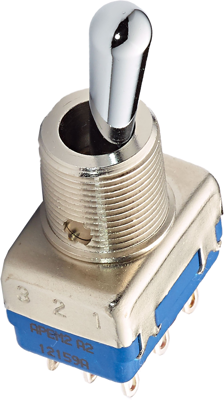

Toggle switch, 12159A, APEM
The 12159A toggle switch is the perfect solution for your electrical control needs. With its three poles, it offers reliable and efficient performance. The switch features an ON-OFF-ON electrical function, allowing you to easily toggle between different settings. Its levers provide a comfortable grip and are designed to stay securely in place with three locked positions.
Features
- CECC approved - conforms to MIL specifications
- Robust switch for high specification environments
- Mechanical operation
- Several front panel sealing options
- Several locking lever options
Technical specifications
| Connection | solder connection | |
| Design | vertical | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 3 pole | |
| Latching switching function | latching | |
| Breaking capacity | 4 A/125 VAC, 30 VDC | |
| Shift position | On-Off-On |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
