3539-021N000 | APEM
Toggle switch, metal, 1 pole, latching, On-Off-On, 15 A/28 VDC, silver-plated, 3539-021N000
Unit Price (€ / pc.)
29.9523 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

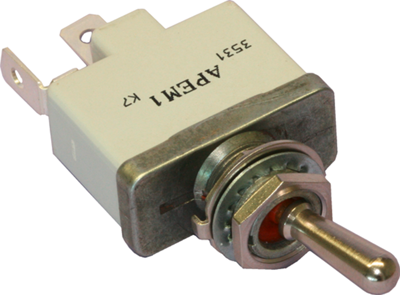

Toggle switch, 3539-021N000, APEM
This toggle switch is designed for outdoor applications. Frontal sealing to IP67 and IP69K by a silicone membrane. Rear sealing to IP64 provided by moulded-in terminals.
Features
- Completely sealed switch withstanding 0.1 bar pressure
- Approved to European standards CECC 96000
Technical specifications
| Connection | solder connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 15 A/28 VDC | |
| Shift position | On-Off-On | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
