5236YAB | APEM
Toggle switch, metal, 1 pole, latching, On-On, 4 A/30 VDC, silver-plated, 5236YAB
Unit Price (€ / pc.)
6.9258 € *
Available: 49 pcs.
Leadtime: 10 Weeks **
Total Price:
6.93 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9258 €
10 pcs.
6.0928 €
100 pcs.
5.3431 €
250 pcs.
5.1408 €
1000 pcs.
4.8195 €
*incl. VAT plus shipping costs
**Subject to prior sale

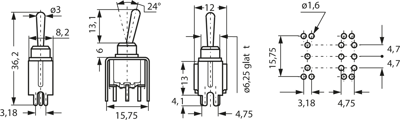

Toggle switches for PCB mounting, type APEM 5000.
With straight solder pins and bracket; Grid: 4.7 mm. Terminals: with epoxy sealing. Materials: housing diallyl phtalate, lever chrome-plated brass, socket nickel-plated brass. Contacts: silver. Breaking capacity: 3.0 A/250 VAC, 6.0 A/125 VAC, 4.0 A/30 VDC. Contact resistance (new state): max. 10 mohm. Insulation resistance: min. 1000 Mohm on 500 VDC. Operating temperatures: –40 to +85 °C.
Technical attributes (type, number of poles, switching actions OFF, ON): 5236YAB, single-pole, ON-ON
Technical specifications
| Connection | Leiterplattenanschluss | |
| Design | stehend | |
| illuminated | No | |
| Actuator colour | metall | |
| contact surface | versilbert | |
| Pin number | 1-polig | |
| Latching switching function | rastend | |
| Breaking capacity | 4 A/30 VDC | |
| Shift position | Ein-Ein |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365003 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
