5237WCD | APEM

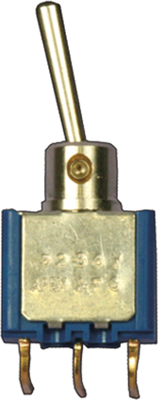

Toggle switch, metal, 1 pole, groping/latching, (On)-Off-(On), 0.4 VA/20 V AC/DC, gold-plated, 5237WCD
Toggle switches for PCB mounting, type APEM 5000.
Breaking capacity: 0.4 VA to 20 V AC/DC. Insulation resistance: min. 1000 Mohm on 500 VDC. Contact resistance (start value): max. 10 mohm. Material housing: diallyl phtalate. Lever: chrome-plated brass. Socket: nickel-plated brass. Contacts: tinned brass. Operating temperatures: –40 to +85 °C.
With angled solder pins for horizontal mounting, type 5200W.
Grid: 4.7 mm.
Technical attributes (type, number of poles, switching functions OFF, ON, momentary on, momentary (M)): 5237WCD, single-pole, M-OFF-M
Connection | PCB connection | |
Design | horizontal | |
illuminated | No | |
Actuator colour | metal | |
contact surface | gold-plated | |
Pin number | 1 pole | |
Latching switching function | groping/latching | |
Breaking capacity | 0.4 VA/20 V AC/DC | |
Shift position | (On)-Off-(On) |
Country of origin | FR |
Customs tariff number | 85365080 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
