5536A-4N | APEM

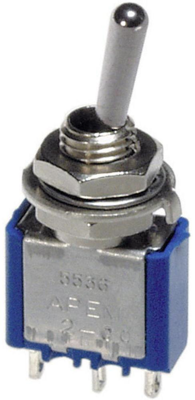

Toggle switch, metal, 1 pole, latching, On-On, 4 A/30 VDC, silver-plated, 5536A-4N
Unit Price (€ / pc.)
5.2241 € *
Available: 315 pcs.
Leadtime: 14 Weeks **
Total Price:
5.22 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2241 €
10 pcs.
4.6053 €
100 pcs.
4.0341 €
250 pcs.
3.8794 €
1000 pcs.
3.6295 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle switches, type APEM 5000.

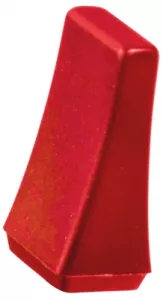

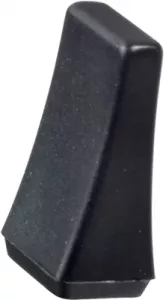

Notched lever with anti-twist push-on caps (caps are available separately), switch with 6.0 mm bushing mount and solder connection; Breaking capacity: 3.0 A/250 VAC, 6.0 A/125 VAC. Insulation resistance: min. 1000 Mohm on 500 VDC. Housing material: diallyl phtalate. Lever: brass, chrome-plated. Socket: brass, nickel-plated. Contacts: silver. Operating temperatures: –40 to +85 °C.
Technical attributes (type, number of poles, switching functions OFF, ON): 5536A-4N, single-pole, ON-ON
Technical specifications
| Anschluss | Lötanschluss | |
| Bauform | stehend | |
| beleuchtet | No | |
| Farbe Betätiger | metall | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 1-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 4 A/30 VDC | |
| Schaltstellung | Ein-Ein |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
