55636AVDE + U272 | APEM

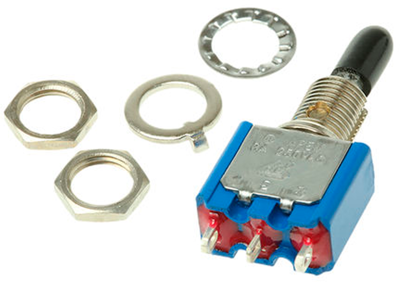

Toggle switch, metal, 1 pole, latching, On-On, 3 A/250 VAC, 6 A/125 VAC, silver-plated, 55636AVDE + U272
Unit Price (€ / pc.)
6.5093 € *
Available: 19 pcs.
Next delivery: 100 pcs. on 2025-05-20
Leadtime: 14 Weeks **
Total Price:
6.51 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5093 €
10 pcs.
5.7358 €
100 pcs.
5.0218 €
250 pcs.
4.8314 €
1000 pcs.
4.5220 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle switches, type APEM 55000.
To EN 61058-1, with 6.35 mm (1/4") bushing mount and solder connection. Terminals with epoxy sealing; Breaking capacity: 3.0 A/250 VAC, 6.0 A/125 VAC. Dielectric strength: min. 1000 VRMS / 50 Hz between terminals. Housing material: diallyl phtalate. Lever: brass, chrome-plated with black insulation cap made of Vinyl. Socket: brass, nickel-plated. Contacts: silver. Operating temperatures: –40 to +85 °C. Certifications: VDE.
Technical attributes (type, number of poles, switching functions OFF, ON): 55636AVDE, single-pole, ON-ON
Technical specifications
| Anschluss | Lötanschluss | |
| Bauform | stehend | |
| Befestigungsart | Zentralbefestigung | |
| beleuchtet | No | |
| Farbe Betätiger | metall | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 1-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 3 A/250 VAC, 6 A/125 VAC | |
| Schaltstellung | Ein-Ein |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
