TL46Y005000 | APEM

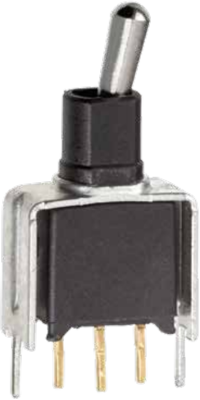

Toggle switch, metal, 2 pole, latching, On-On, 0.4 VA/20 V AC/DC, gold-plated, TL46Y005000
Unit Price (€ / pc.)
10.3054 € *
Available: 130 pcs.
Leadtime: 10 Weeks **
Total Price:
10.31 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3054 €
10 pcs.
9.0678 €
50 pcs.
8.4490 €
150 pcs.
8.0682 €
500 pcs.
7.6517 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle switches, wash-proof, type APEM TL.

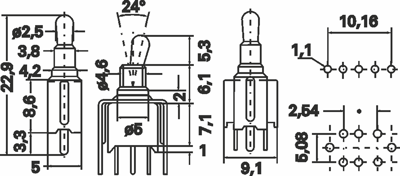

Subminiature version for PCB mounting, fully sealed, wash-proof, wave soldering resistant, no ultrasonic soldering; Grid: 2.54 mm. Housing: PBT. Lever: brass, nickel-plated, 5.3 mm length. Contacts and terminals: gold-plated brass. Sealing of the terminals: epoxy. Breaking capacity: max. 0.4 VA/20 V AC/DC. Contact resistance: max. 20 mohm. Insulation resistance: min. 1000 Mohm on 500 VAC. Dielectric strength between contacts/terminals and ground: 500 VRMS / 1000 VRMS. Operating temperatures: –30 to +85 °C.
With straight solder pins and bracket.
Technical attributes (type, number of poles, switching action OFF, ON, momentary on, momentary (M)): TL46Y005000, double-pole, ON-ON
Technical specifications
| Connection | PCB connection | |
| Design | vertical | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | gold-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
