421-002-20 | apra

Aluminum Profile enclosure, (L x W x H) 220 x 75.8 x 31.2 mm, black (RAL 9005), IP65, 421-002-20

Order No.: 70H4382
EAN: 4099891611583
MPN:
421-002-20
Series: XDREAM2U
apra
421-002-20 apra General Purpose Enclosures Image 1
421-002-20 apra General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
37.1756 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
37.1756 €

Enclosure profile, 421-002-20, apra

Features

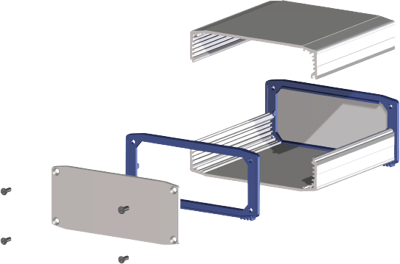

  • Double-leaf aluminium profile enclosure
  • Sealing frame in 5 colours with integrated anti-slip enclosure feet between enclosure and front / rear panel
  • Conductive interior, powder coated on the outside
  • IP 65 with monted sealing frame
Technical specifications
Width 75.8 mm
Colour black
Height 31.2 mm
Length 220 mm
Material aluminum
RAL number 9005
Degree of protection (IP) IP65
Logistics
Country of origin DE
Customs tariff number 85381000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
