AGP 15 G-ME | Assmann WSW
D-Sub connector housing, size: 2 (DA), straight 180°, plastic, shielded, silver, AGP 15 G-ME
Order No.: 55F4039
EAN: 4099889813128
MPN:
AGP 15 G-ME
Unit Price (€ / pc.)
1.7136 € *
Available: 981 pcs.
Leadtime: On Request **
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5470 €
50 pcs.
1.3685 €
100 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable housings for sub-D connectors, type Assmann WSW AGP.
Polycarbonate twin-shell housing with straight cable entry and inside cable strain relief, and two captive fastening bolts with 4-40 UNC thread. The short fastening screws included can be replaced with long knurled screws (order separately).
With metalized polycarbonate housing, type AGP-../ME.

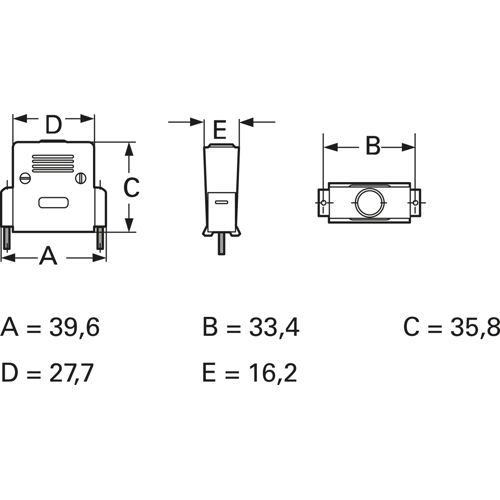

Technical attributes (type, dimensions A, B, D, E): AGP–15G/ME, A 39.6, B 33.4, C 35.8, D 27.7, E 16.2 mm
Technical specifications
| Colour | silver | |
| Shell size | 2 (DA) | |
| Shell Material | plastic, shielded | |
| Cable Outlet | straight 180° | |
| Type of locking | locking screw 4-40 UNC |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
