A-57/14 M | Assmann WSW

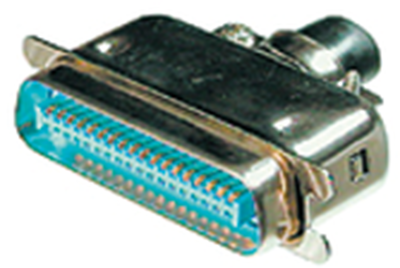

Centronics plug, A-57/14 M, Assmann WSW

For wire clip locking; Contact load capacity: 5.0 A. Rated voltage: 500 Volt. Ambient temperature: –55 to +125 °C. Contacts: bronze, gold-plated. Housing: galvanized or nickel-plated steel sheet, chromalized. Plastic inserts: polyester GV. Inflammability: to UL 94 V-0. Version: ready-made with contact inserts.

Standard straight connectors, type A 57.. M.

With solder terminals and round cable entrance at the rear; Contact insert: pin contacts.

Technical attributes (number of poles, dimensions): 23-pole, A 38, B 40, C 22, D 14, E 8 mm.
