A-57/24 F | Assmann WSW

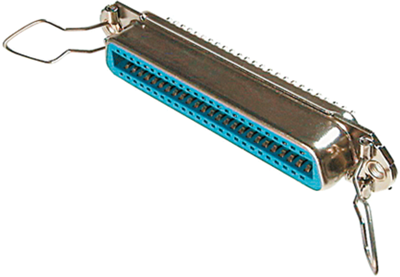

Centronics socket, 24 pole, solder cup, A-57/24 F
Order No.: 56F7252
EAN: 4099889815016
MPN:
A-57/24 F
Unit Price (€ / pc.)
12.5902 € *
Available: 73 pcs.
Leadtime: On Request **
Total Price:
12.59 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5902 €
10 pcs.
11.3288 €
50 pcs.
10.1864 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connectors series IEEE 488 or Centronics, type Assmann WSW A 57.
For wire clip locking; Contact load capacity: 5.0 A. Rated voltage: 500 Volt. Ambient temperature: –55 to +125 °C. Contacts: bronze, gold-plated. Housing: galvanized or nickel-plated steel sheet, chromalized. Plastic inserts: polyester GV. Inflammability: to UL 94 V-0. Version: ready-made with contact inserts.
Standard female panel connectors, type A 57.. F.
With solder terminals and wire clips; Contact insert: female.

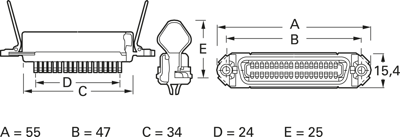

Technical attributes (number of poles, dimensions): 24–pole, A 55, B 47, C 34, D 24, E 25 mm
Technical specifications
| Version | centronics socket | |
| Contact connection | solder cup | |
| Assembly | Through-hole mounting | |
| Pin number | 24 pole | |
| Type of locking | Spring |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
