A-57/36 F | Assmann WSW

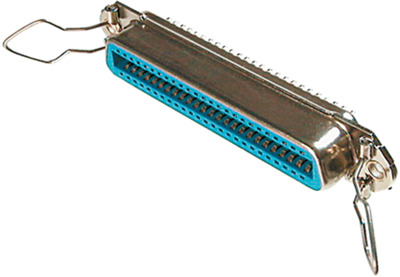

Centronics socket, 36 pole, solder cup, A-57/36 F
Order No.: 56F7254
EAN: 4099889815023
MPN:
A-57/36 F
Unit Price (€ / pc.)
8.2110 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.21 € *
Price list
Quantity
Price per unit*
40 pcs.
8.2110 €
400 pcs.
7.2233 €
800 pcs.
6.9734 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connectors series IEEE 488 or Centronics, type Assmann WSW A 57.
For wire clip locking; Contact load capacity: 5.0 A. Rated voltage: 500 Volt. Ambient temperature: –55 to +125 °C. Contacts: bronze, gold-plated. Housing: galvanized or nickel-plated steel sheet, chromalized. Plastic inserts: polyester GV. Inflammability: to UL 94 V-0. Version: ready-made with contact inserts.
Standard female panel connectors, type A 57.. F.
With solder terminals and wire clips; Contact insert: female.

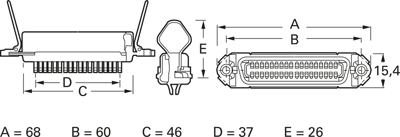

Technical attributes (number of poles, dimensions): 36–pole, A 68, B 60, C 46, D 37, E 26 mm
Technical specifications
| Version | centronics socket | |
| Contact connection | solder cup | |
| Assembly | Through-hole mounting | |
| Pin number | 36 pole | |
| Type of locking | Spring |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
