RB101 5% 470R | ATE ELECTRONICS

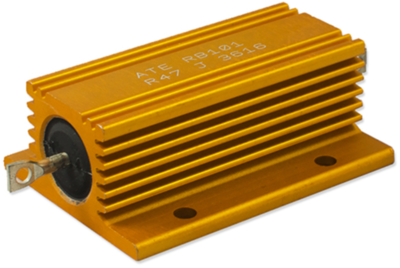

Wirewound resistor, 470 Ω, 100 W, ±5 %, RB101 5% 470R
Unit Price (€ / pc.)
10.71 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
100 W, tolerance 5.0 %, type ATE RB 101.
Rated load with/without heatsink: 100/40 W. Breakdown voltage: 1900 V. Dielectric strength: 3500 VAC. Insulation resistance: 10 Gohm. Overload: 5 x rated load for 5.0 s. Dimensions: A 47.5 B 89, C 24, D 27, E 64, F 35, G 37, H 11.5, J 14.5 K 3.5, L 4.4, N 3.0. Connection: 3.2 mm diameter.
Technical specifications
ohmscher Widerstand | 470 Ω | |
Ausführung | Hochlast-Drahtwiderstand | |
Bauform | Chassis | |
Breite | 47.5 mm | |
Höhe | 24 mm | |
Länge | 64 mm | |
Leistung | 100 W | |
max. Temperatur | 250 °C | |
min. Temperatur | -55 °C | |
Montage | Chassismontage | |
Nennbelastbarkeit ohne Kühlfläche | 40 W | |
Toleranz | ±5 % | |
Temperaturkoeffizient | 30 ppm/K |
Download
Logistics
Ursprungsland | IT |
Zolltarifnummer | 85332100 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
