RB150 5% 150R | ATE ELECTRONICS

Wirewound resistor, 150 Ω, 150 W, ±5 %, RB150 5% 150R

Order No.: 63E5744
EAN: 4099879703163
MPN:
RB150 5% 150R
Series: RB150
ATE ELECTRONICS
RB150 5% 150R ATE ELECTRONICS Wirewound Resistors
Image may differ
Print
Key Specification:
ohmic resistance 150 Ω
Tolerance ±5 %
Power 150 W
Design chassis
Assembly chassis mounting
Show 28 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
24.9424 € *
Available: 14 pcs.
Leadtime: 7 Weeks **
Total Price:
24.94 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9424 €
10 pcs.
21.9436 €
50 pcs.
20.4561 €
150 pcs.
19.5517 €
500 pcs.
18.5521 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

150 W, tolerance 5.0 %, type ATE RB 150.
Technical specifications
ohmic resistance 150 Ω
Version high load wire resistor
Design chassis

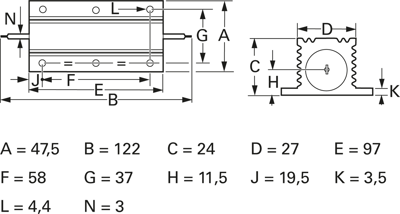

Width 47.5 mm
Height 24 mm
Length 97 mm
Power 150 W
max. operating temperature 250 °C
min. operating temperature -55 °C
Assembly chassis mounting
nominal load capacity without cooling surface 55 W
Tolerance ±5 %
Temperature coefficient 30 ppm/K
Show similar products 0
Logistics
Country of origin IT
Customs tariff number 85332100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
