RB150 5% 220R | ATE ELECTRONICS
Wirewound resistor, 220 Ω, 150 W, ±5 %, RB150 5% 220R
Unit Price (€ / pc.)
20.4561 € *
Available: 107 pcs.
Leadtime: 7 Weeks **
Total Price:
20.46 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4561 €
10 pcs.
18.9448 €
100 pcs.
17.8738 €
500 pcs.
16.8623 €
1000 pcs.
16.0531 €
*incl. VAT plus shipping costs
**Subject to prior sale
150 W, tolerance 5.0 %, type ATE RB 150.

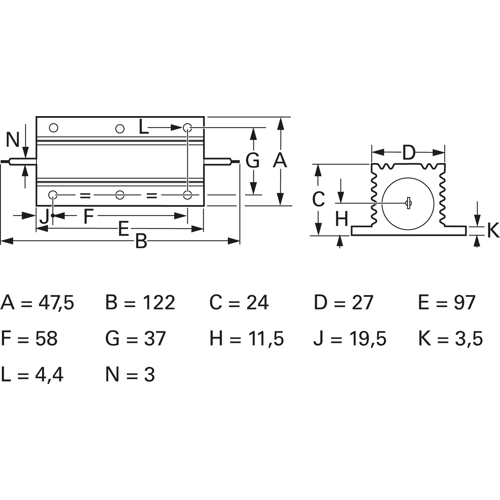

Technical specifications
| ohmic resistance | 220 Ω | |
| Version | high load wire resistor | |
| Design | chassis | |
| Width | 47.5 mm | |
| Height | 24 mm | |
| Length | 97 mm | |
| Power | 150 W | |
| max. operating temperature | 250 °C | |
| min. operating temperature | -55 °C | |
| Assembly | chassis mounting | |
| nominal load capacity without cooling surface | 55 W | |
| Tolerance | ±5 % | |
| Temperature coefficient | 30 ppm/K |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
