RB25 5% 470R | ATE ELECTRONICS

Name: Wirewound resistor, 470 Ω, 25 W, ±5 %, RB25 5% 470R
Brand: ATE ELECTRONICS
SKU: 63E4772
Price: 2.88 EUR
Availability: OutOfStock

Wirewound resistor, 470 Ω, 25 W, ±5 %, RB25 5% 470R

Order No.: 63E4772

EAN: 4099879701732

MPN:

RB25 5% 470R

Series: RB

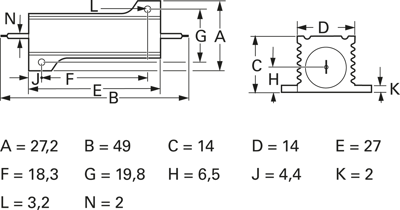

Image may differ

Key Specification:

ohmscher Widerstand 470 Ω

Toleranz ±5 %

Leistung 25 W

Bauform Chassis

Montage Chassismontage

Show 26 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.8798 € *

Available: 0 pcs.

Leadtime: 7 Weeks **

Add to Cart

Total Price:

2.88 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Wire-wound power resistors, 25 W, tolerance 5.0 %, type ATE RB 25.

High thermal conductivity, excellent heat dissipation due to aluminum profile heatsink, certified to MiL-PRF-18546 G

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	IT
Zolltarifnummer	85332100

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

1 item in 26 variations
