RB75 5% 0R33 | ATE ELECTRONICS
Wirewound resistor, 330 mΩ, 75 W, ±5 %, RB75 5% 0R33
Unit Price (€ / pc.)
10.9837 € *
Available: 0 pcs.
Next delivery: 3 pcs. on 2025-02-28
Leadtime: 7 Weeks **
Total Price:
10.98 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9837 €
10 pcs.
10.1745 €
100 pcs.
9.5914 €
500 pcs.
9.0559 €
1000 pcs.
8.6156 €
*incl. VAT plus shipping costs
**Subject to prior sale
75 W, tolerance 5.0 %, type ATE RB 75.

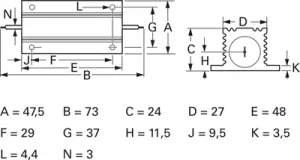

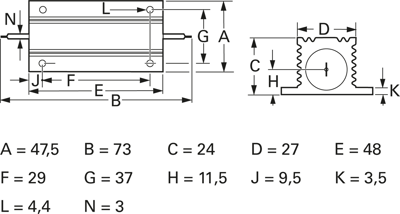

Rated load with/without heatsink: 75/35 W. Breakdown voltage: 1400 V. Dielectric strength: 3500 VAC. Insulation resistance: 10 Gohm. Overload: 5 x rated load for 5.0 s. Dimensions: A 47.5 B 73, C 24, D 27, E 48, F 29, G 37, H 11.5, J 9.5, K 3.5, L 4.4, N 3.0. Connection: 3.2 mm diameter.
Technical specifications
| ohmscher Widerstand | 330 mΩ | |
| Ausführung | Hochlast-Drahtwiderstand | |
| Bauform | Chassis | |
| Breite | 47.5 mm | |
| Durchmesser | 3.2 mm | |
| Höhe | 24 mm | |
| Länge | 48 mm | |
| Leistung | 75 W | |
| max. Temperatur | 250 °C | |
| min. Temperatur | -55 °C | |
| Montage | Chassismontage | |
| Nennbelastbarkeit ohne Kühlfläche | 35 W | |
| Toleranz | ±5 % | |
| Temperaturkoeffizient | ±100 ppm/K |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
