RB75 5% 150R | ATE ELECTRONICS
Wirewound resistor, 150 Ω, 75 W, ±5 %, RB75 5% 150R
Unit Price (€ / pc.)
8.4728 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
75 W, tolerance 5.0 %, type ATE RB 75.

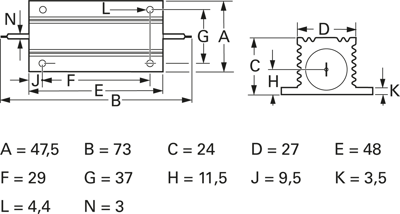

Rated load with/without heatsink: 75/35 W. Breakdown voltage: 1400 V. Dielectric strength: 3500 VAC. Insulation resistance: 10 Gohm. Overload: 5 x rated load for 5.0 s. Dimensions: A 47.5 B 73, C 24, D 27, E 48, F 29, G 37, H 11.5, J 9.5, K 3.5, L 4.4, N 3.0. Connection: 3.2 mm diameter.
Technical specifications
| ohmic resistance | 150 Ω | |
| Version | high load wire resistor | |
| Design | chassis | |
| Width | 47.5 mm | |
| diameter | 3.2 mm | |
| Height | 24 mm | |
| Length | 48 mm | |
| Power | 75 W | |
| max. operating temperature | 250 °C | |
| min. operating temperature | -55 °C | |
| Assembly | chassis mounting | |
| nominal load capacity without cooling surface | 35 W | |
| Tolerance | ±5 % | |
| Temperature coefficient | 30 ppm/K |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
