O- 48,000000M-AQO 14-50-5,0-A | Auris
Crystal oscillator, 48 MHz, ±50 ppm, 15 pF, THT, (L x W x H) 20.4 x 13.1 x 5.3 mm, O- 48,000000M-AQO 14-50-5,0-A
Unit Price (€ / pc.)
2.7370 € *
Available: 110 pcs.
Leadtime: 6 Weeks **
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
25 pcs.
2.3324 €
100 pcs.
2.1539 €
250 pcs.
2.0468 €
1000 pcs.
1.8683 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quartz oscillators, CMOS/TTL compatible, type Auris AQO14.

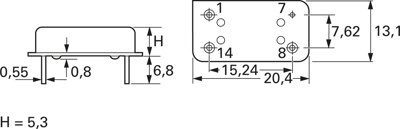

In 14-pole DiL package; Operating temperatures: 0 to +70 °C. Frequency stability: ±50 ppm. Symmetry: 40/60 % at 0.5 VDD. Rise and decay time max. 10 ns. Input voltage: 5.0 VDC ±10 %. Input current: 1.0 to 20 MHz 20 mA, 22 to 40 MHz 30 mA, 45 to 80 MHz 40 mA. Connections: 1/NC, 7/GND, 8/Out, 14/5.0 VDC/C-MOS, compatible, 1-10 TTL gates. Dimension H: 5.3 mm (100 MHz = 7.7 mm).
Type: 48.000000 MHz
Technical specifications
| Width | 13.1 mm | |
| Frequency stability | ±50 ppm | |
| Height | 5.3 mm | |
| Capacity | 15 pF | |
| Length | 20.4 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | 0 °C | |
| Assembly | THT | |
| nominal frequency | 48 MHz |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85416000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
