Q- 12,000000M-HC49U-F-30-30-D-32 | Auris
Crystal, 12 MHz, 32 pF, ±30 ppm, 40 Ω, THT, Q- 12,000000M-HC49U-F-30-30-D-32
Unit Price (€ / pc.)
0.9639 € *
Available: 231 pcs.
Leadtime: 3 Weeks **
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9639 €
50 pcs.
0.8449 €
250 pcs.
0.7378 €
1000 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale

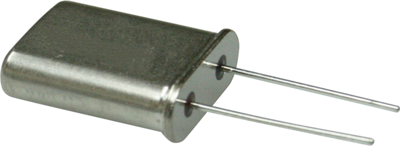

Standard quartz crystals, type Auris HC49U.
Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 32 pF. Operating temperatures: –20 to +70 °C. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.
Temperature tolerance ±30 ppm.
Type: 12.000000 MHz

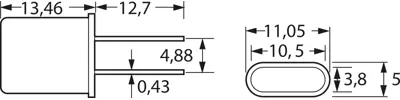

Technical specifications
| Breite | 5 mm | |
| ESR (Äquivalenter Serienwiderstand) | 40 Ω | |
| Frequenz | 12 MHz | |
| Frequenzstabilität | +/-30 | |
| Höhe | 13.46 mm | |
| Länge | 11.05 mm | |
| Lastkapazität | 32 pF | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| Montage | THT | |
| Toleranz | ±30 ppm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85416000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
