Q- 14,745600M-HC49U-F-30-30-D-32 | Auris

Crystal, 14.7456 MHz, 32 pF, ±30 ppm, 40 Ω, THT, Q- 14,745600M-HC49U-F-30-30-D-32

Order No.: 78D326
EAN: 4099879149886
MPN:
Q- 14,745600M-HC49U-F-30-30-D-32
Series: HC49U
Auris

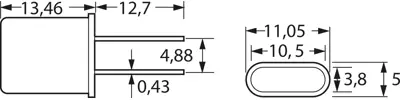

Q- 14,745600M-HC49U-F-30-30-D-32 Auris Quartze Image 1

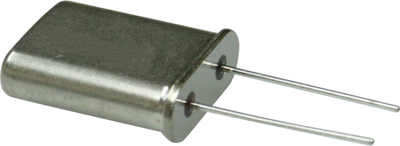

Q- 14,745600M-HC49U-F-30-30-D-32 Auris Quartze Image 2
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 510 pcs.
Leadtime: On Request **
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9639 €
50 pcs.
0.8449 €
250 pcs.
0.7378 €
1000 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale

Standard quartz crystals, type Auris HC49U.

Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 32 pF. Operating temperatures: –20 to +70 °C. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.


Temperature tolerance ±30 ppm.


Type: 14.745600 MHz

Technical specifications
Width 5 mm
ESR (Equivalent Series Resistance) 40 Ω
Frequency 14.7456 MHz
Frequency stability +/-30
Height 13.46 mm
Length 11.05 mm
Load Capacity 32 pF
max. operating temperature 70 °C
min. operating temperature -20 °C
Assembly THT
Tolerance ±30 ppm
Logistics
Country of origin CN
Customs tariff number 85416000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
