Q- 20,000000M-HC49U-F-30-30-D-32 | Auris

Name: Crystal, 20 MHz, 32 pF, ±30 ppm, 30 Ω, THT, Q- 20,000000M-HC49U-F-30-30-D-32
Brand: Auris
SKU: 78D340
Price: 0.46 EUR
Availability: OutOfStock

Crystal, 20 MHz, 32 pF, ±30 ppm, 30 Ω, THT, Q- 20,000000M-HC49U-F-30-30-D-32

Order No.: 78D340

EAN: 4099879149930

MPN:

Q- 20,000000M-HC49U-F-30-30-D-32

Series: HC49U

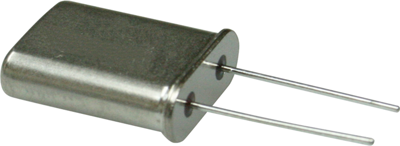

Q- 20,000000M-HC49U-F-30-30-D-32 Auris Quartze Image 2

Image may differ

Key Specification:

Frequenz 20 MHz

Frequenzstabilität +/-30

Toleranz ±30 ppm

Lastkapazität 32 pF

ESR (Äquivalenter Serienwiderstand) 30 Ω

Show 26 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4641 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.46 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Standard quartz crystals, type Auris HC49U.

Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 32 pF. Operating temperatures: –20 to +70 °C. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.

Temperature tolerance ±30 ppm.

Type: 20.000000 MHz

Download

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85416000

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
