Q- 26,000000M-HC5032/4-F-30-50-E-16-TR | Auris

Crystal, 26 MHz, 16 pF, ±30 ppm, 40 Ω, SMD, Q- 26,000000M-HC5032/4-F-30-50-E-16-TR

Order No.: 77D9629
EAN: 4099879148421
MPN:
Q- 26,000000M-HC5032/4-F-30-50-E-16-TR
D11114
Series: HC5032
Auris
Q- 26,000000M-HC5032/4-F-30-50-E-16-TR Auris Quartze
Image may differ
Print
Key Specification:
Frequency 26 MHz
Frequency stability +/-50
Tolerance ±30 ppm
Load Capacity 16 pF
ESR (Equivalent Series Resistance) 40 Ω
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.5474 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD resonators with high reliability, type Auris HC5032/4.

Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 16 pF. Parallel capacitance: 7.0 pF. Insulation resistance: 500 Mohm. Aging: ±3.0 ppm/year. Operating temperatures: –40 to +85 °C.


Type: 26.000000 MHz
Technical specifications

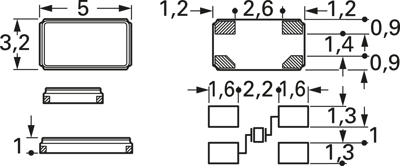

Number of connection pads 4
Width 3.2 mm
ESR (Equivalent Series Resistance) 40 Ω
Frequency 26 MHz
Frequency stability +/-50
Height 1 mm
Length 5 mm
Load Capacity 16 pF
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Tolerance ±30 ppm
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85416000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
