1210YC475KAT2A | AVX

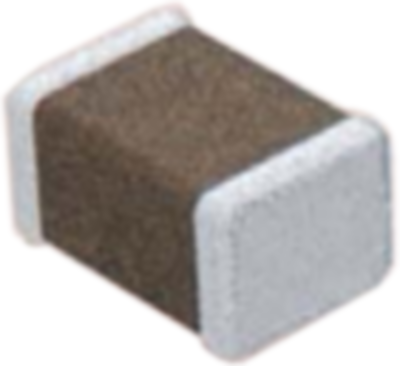

Ceramic capacitor, 4.7 µF, 16 V (DC), ±10 %, SMD 1210, X7R, 1210YC475KAT2A
Unit Price (€ / pc.)
0.3070 € *
Available: 0 pcs.
Leadtime: On Request **
Ceramic capacitor, 1210YC475KAT2A, AVX
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear.
Capacitance for X7R varies under the influence of electrical operating con-ditions such as voltage and frequency.
X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
Technical specifications
| Design | SMD 1210 | |
| Dielectric material | X7R | |
| Capacity | 4.7 µF | |
| Length | 3.2 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 16 V | |
| Tolerance | ±10 % |
Download
Logistics
| Customs tariff number | 85322400 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
