1-1393793-9 | AXICOM

Relay, 2 Form C (NO/NC), 12 V (DC), 280 Ω, 3 A, 220 V (DC), 250 V (AC), monostable, 1-1393793-9

Order No.: 30G9250
EAN: 4099889396782
MPN:
1-1393793-9
V23105-A5503-A201
Series: D2n

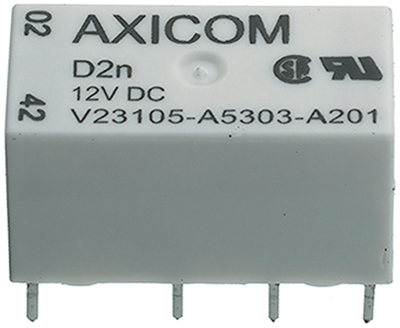

1-1393793-9 AXICOM Industrial Relays Image 1

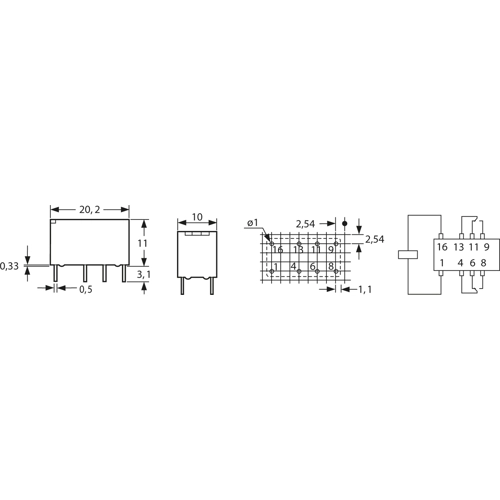

1-1393793-9 AXICOM Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
3.3082 € *
Available: 2 pcs.
Leadtime: 16 Weeks **
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
25 pcs.
2.9036 €
100 pcs.
2.7489 €
250 pcs.
2.6537 €
1000 pcs.
2.4871 €
*incl. VAT plus shipping costs
**Subject to prior sale

Signal relay, type TE Connectivity/AXICOM D2n.

With 2 x CO contacts, for PCB mounting; Non-polarized switching voltage: max. 220 VDC/250 VAC. Switching current: 3.0 A. Contact rating: 60 W/125 VA. Response time: 5.0 ms. Release time: 4.0 ms. Bounce time: 3.0 ms. Degree of protection: IP 67. Operating temperatures: –25 to +85 °C (150 and 200 mW), –25 to +60 °C (as of 515 mW). Contacts: AgNi gold-plated.

Technical attributes (type, rated voltage, rated coil power, coil resistance (±10 % at +23 °C)): 1-1393793-9, 12 VDC, 515 mW, 280 ohm

Technical specifications
Anschluss Leiterplattenanschluss
Kontaktart 2 Wechsler
Kontaktmaterial Au
Schaltspannung (AC) 250 V
Schaltspannung (DC) 220 V
Schaltstrom 3 A
Spulenspannung (DC) 12 V
Spulentyp monostabil
Spulenwiderstand 280 Ω
Logistics
Ursprungsland US
Zolltarifnummer 85364900
Originalverpackung Stange mit 25 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
