1-1462000-3 | AXICOM
Relay, 2 Form C (NO/NC), 24 V (DC), 3.872 kΩ, 2 A, 220 V (DC), 250 V (AC), monostable, 1-1462000-3
Unit Price (€ / pc.)
5.2122 € *
Available: 14 pcs.
Leadtime: On Request **
Total Price:
5.21 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2122 €
10 pcs.
4.7957 €
50 pcs.
4.3554 €
100 pcs.
3.9270 €
*incl. VAT plus shipping costs
**Subject to prior sale

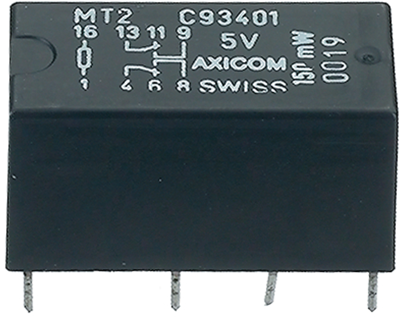

Signal relay, type TE Connectivity/AXICOM MT2.
2 x CO contacts. For PCB mounting. Monostable and non-polarized; Switching voltage: max. 220 VDC/250 VAC. Switching current: max. 2.0 A. Breaking capacity: max. 60 W/62.5 VA. Coil power: 150 mW. Response time: typically 4.0 ms. Release time: typically 1.0 ms. Bounce time: typically 1.0 ms. Switching rate: 50/s. Degree of protection: IP 67. Ambient temperatures: –55 °C to +85 °C. Contacts: AgNi, gold-plated.
Technical attributes (type, rated voltage, rated power, coil resistance (±10 % at +23 °C)): 1-1462000-3, 24 VDC, 3872 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | NiTi | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 220 V | |
| switching current | 2 A | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| Coil resistance | 3.872 kΩ |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
