1393809-1 | AXICOM
Relay, 2 Form C (NO/NC), 24 V (DC), 890 Ω, 5 A, 250 V (DC), 250 V (AC), monostable, 1393809-1

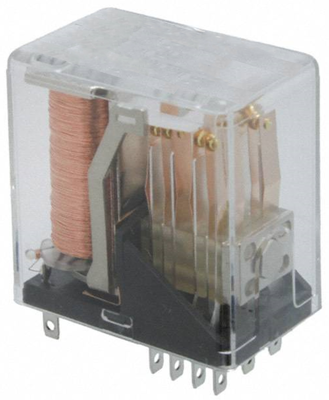

Cradle relay, type TE Connectivity/AXICOM N.

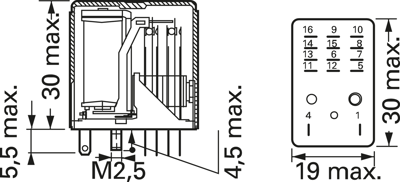

Size: 2, for DC voltage, non-polarized, monostable, pluggable and fixed installation, dust-proof (IP 30) or hermetically sealed (IP 67). Ambient temperatures: –40 to +70 °C. Limit temperature: max. +100 °C. Thermal resistance: 50 K/W. Response/release time: typically 7.5/3.0 ms. Socket descriptions below the Cradle relay.
Dust-proof, single contacts+ 2 x CO.
Test voltage: contacts/coil 1500 VRMS, contact/contact 1000 VRMS. Switching voltage: max. 250 V AC/DC. Switching current: max. 5.0 A. Breaking capacity: voltage-dependent 50 to 140 W/500 VA. Switching rate: max. 10 switching cycles/s. Contact material: silver, gold-plated.
Technical attributes (type, rated coil voltage, voltage range (min./max.), coil resistance (±15%)): 0-1393809-1, 24 VDC, 11/40 VDC, 890 ohm
| Anschluss | Schraubanschluss | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | Ag | |
| Schaltspannung (AC) | 250 V | |
| Schaltspannung (DC) | 250 V | |
| Schaltstrom | 5 A | |
| Spulenspannung (DC) | 24 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 890 Ω |
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
