1462000-1 | AXICOM
Relay, 2 Form C (NO/NC), 5 V (DC), 168 Ω, 2 A, 220 V (DC), 250 V (AC), monostable, 1462000-1
Unit Price (€ / pc.)
4.1293 € *
Available: 0 pcs.
Leadtime: On Request **

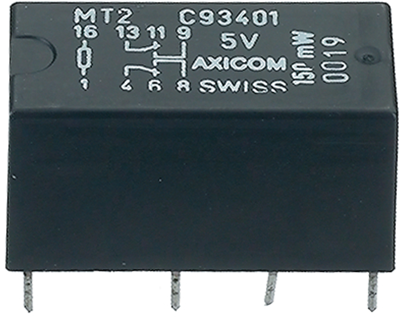

Signal relay, type TE Connectivity/AXICOM MT2.
2 x CO contacts. For PCB mounting. Monostable and non-polarized; Switching voltage: max. 220 VDC/250 VAC. Switching current: max. 2.0 A. Breaking capacity: max. 60 W/62.5 VA. Coil power: 150 mW. Response time: typically 4.0 ms. Release time: typically 1.0 ms. Bounce time: typically 1.0 ms. Switching rate: 50/s. Degree of protection: IP 67. Ambient temperatures: –55 °C to +85 °C. Contacts: AgNi, gold-plated.
Technical attributes (type, rated voltage, rated power, coil resistance (±10 % at +23 °C)): 0-1462000-1, 5.0 VDC, 168 ohm
Technical specifications
| Connection | PCB connection | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | NiTi | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 220 V | |
| switching current | 2 A | |
| Coil voltage (DC) | 5 V | |
| Coil type | monostable | |
| Coil resistance | 168 Ω |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
