3-1393789-7 | AXICOM
Relay, 2 Form C (NO/NC), 5 V (AC), 1029 Ω, 2 A, 220 V (DC), 250 V (AC), monostable, 3-1393789-7
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Available in 5 Days: 1,150 pcs.
Leadtime: 19 Weeks **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
100 pcs.
1.7850 €
350 pcs.
1.5470 €
*incl. VAT plus shipping costs
**Subject to prior sale

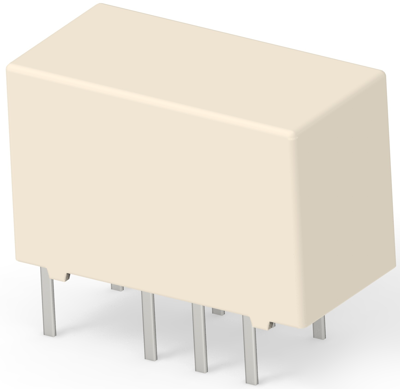

Signal relay, 3-1393789-7, AXICOM
Signal relay, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 200 mW Coil Power (DC), Printed circuit board, PCB-THT.
Features
- Immersion cleanable
- High sensitivity for low power consumption
Applications
- Communications equipment linecard application
- Voice over IP
- Office and business equipment
- Measurement and control equipment
- Automotive equipment as CAN bus
- Keyless entry
- Speaker switch
Technical specifications
| Connection | PCB pin | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | Ru | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 220 V | |
| switching current | 2 A | |
| Coil voltage (AC) | 5 V | |
| Coil type | monostable | |
| Coil resistance | 1029 Ω |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
