3-1462039-2 | AXICOM
Relay, 2 Form C (NO/NC), 12 V (DC), 2880 Ω, 2 A, 220 V (DC), 250 V (AC), monostable, 3-1462039-2
Unit Price (€ / pc.)
3.2725 € *
Available: 0 pcs.
Available in 5 Days: 4,513 pcs.
Leadtime: 25 Weeks **
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
30 pcs.
3.2725 €
150 pcs.
3.2130 €
300 pcs.
3.1535 €
550 pcs.
3.1059 €
*incl. VAT plus shipping costs
**Subject to prior sale

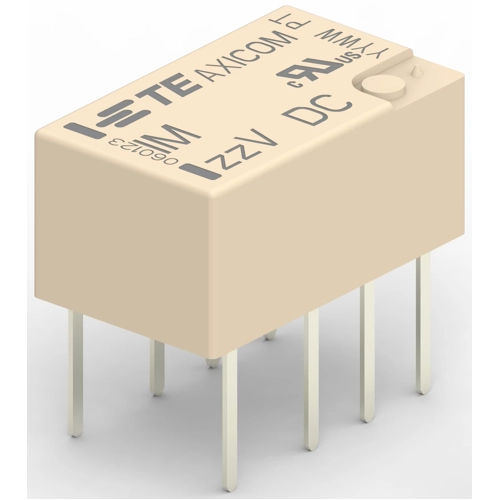

Signal relay, 3-1462039-2, AXICOM
Signal relay, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 50 mW Coil Power (DC), Printed circuit board, PCB-THT, 12 VDC Coil Voltage.
Features
- Low coil power consumption
- High dielectric and surge capability
- High mechanical shock resistance
Applications
- Telecommunication
- Access and transmission equipment
- Optical network terminals
- Office and business equipment
- Measurement and test equipment
- Industrial control
Technical specifications
| Connection | PCB pin | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | PdRu + Au | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 220 V | |
| switching current | 2 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Coil resistance | 2880 Ω |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
