4-1393788-1 | AXICOM
Relay, 2 Form C (NO/NC), 12 V (AC), 64 Ω, 2 A, 220 V (DC), 250 V (AC), bistable, 4-1393788-1
Unit Price (€ / pc.)
3.5343 € *
Available: 0 pcs.
Available in 5 Days: 900 pcs.
Leadtime: 19 Weeks **
Total Price:
353.43 € *
Price list
Quantity
Price per unit*
100 pcs.
3.5343 €
150 pcs.
3.0345 €
*incl. VAT plus shipping costs
**Subject to prior sale

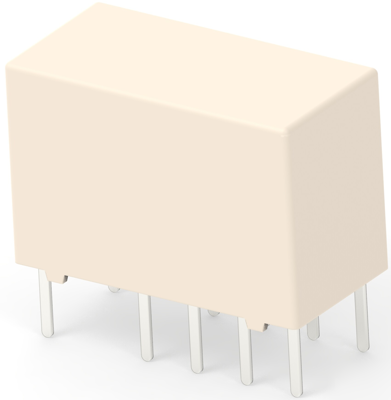

Signal relay, 4-1393788-1, AXICOM
Signal relay, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 446 mW Coil Power (DC), Printed circuit board, PCB-THT.
Features
- Immersion cleanable
- High sensitivity for low power consumption
Applications
- Communications equipment linecard application
- Voice over IP
- Office and business equipment
- Measurement and control equipment
- Automotive equipment as CAN bus
- Keyless entry
- Speaker switch
Technical specifications
| Anschluss | Leiterplattenstift | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | NiPd | |
| Schaltspannung (AC) | 250 V | |
| Schaltspannung (DC) | 220 V | |
| Schaltstrom | 2 A | |
| Spulenspannung (AC) | 12 V | |
| Spulentyp | bistabil | |
| Spulenwiderstand | 64 Ω |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85364110 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
