1393763-4 | AXICOM

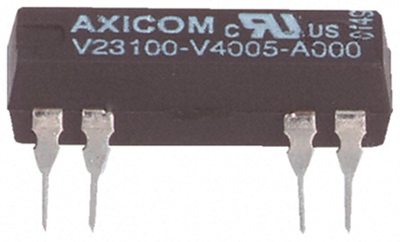

Reed relay, 5 V (DC), 1 Form A (N/O), DIP, 10 W, 1393763-4
Unit Price (€ / pc.)
18.4926 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.49 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4926 €
10 pcs.
17.0170 €
50 pcs.
15.6485 €
100 pcs.
14.2443 €
*incl. VAT plus shipping costs
**Subject to prior sale
Reed relays, type TE Connectivity/AXICOM V23100-V4.
For DC voltage, monostable, hermetically sealed in DiL package. For PCB mounting; Grid: 2.54 mm. Contact type: 1 x NO. Switching voltage: max. 200 V AC/DC. Switching current: max. 0.5 A. Continuous current: max. 1.0 A. Contact rating: max. 10 W/10 VA. Contact resistance: approx. 150 mohm. Dielectric strength contact/coil: 1500 VDC. Capacitance coil and contacts): max 2.0 pF. Response/release time: max. 0.75/0.15 ms. Operating temperatures: –40 to +85 °C.
With suppressor diode, type ..-1393.
Technical attributes (type, rated coil voltage, coil resistance (±10 %)): 0-1393763-4, 5.0 VDC, 500 ohm
Technical specifications
| Connection | PCB connection | |
| Design | DIP | |
| Contact type | 1 Form A (N/O) | |
| Contact material | ruthenium | |
| Grid | 2.54 mm | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 200 V | |
| Switching Voltage (DC) | 200 V | |
| switching current | 500 mA | |
| Coil voltage (DC) | 5 V | |
| Coil resistance | 500 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
