4-1393763-2 | AXICOM
Reed relay, 24 V (DC), 1 Form C (NO/NC), DIP, 3 W, with diode, 4-1393763-2
Unit Price (€ / pc.)
31.6421 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

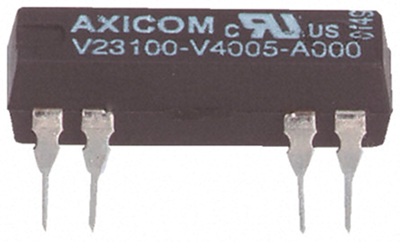

Reed relays, type TE Connectivity/AXICOM V23100-V4.

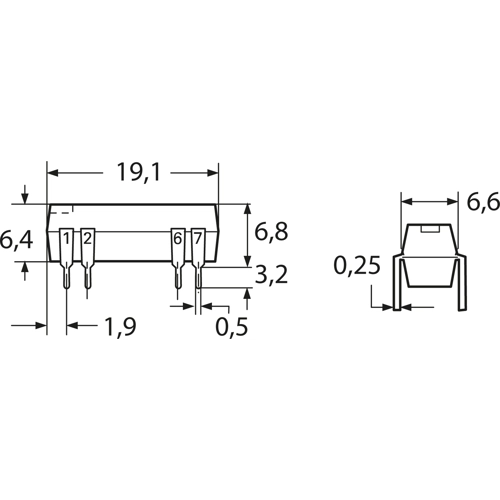

Hermetically sealed, in DiL package; Grid: 2.54 mm. Contact type: 1 CO. Switching voltage: max. 175 VDC. Switching current: max. 0.25 A. Continuous current: max. 1.2 A. Breaking capacity: max. 3.0 W/3.0 VA. Contact resistance: max. 150 mohm. Coil/contact capacitance: max. 2.0 pF. Test voltage: coil/contact 1500 VDC, contact/contact 200 VDC. Response/release time: max. 0.7/1.0 ms. Ambient temperature: –40 to +70 °C.
With suppressor diode, type ..-1393.
Technical attributes (type, rated voltage, coil resistance (±10 %)): 4-1393763-2, 24 VDC, 2000 ohm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Ausführung | mit Diode | |
| Bauform | DIP | |
| Kontaktart | 1 Wechsler | |
| Kontaktmaterial | Ruthenium | |
| Rastermaß | 2.54 mm | |
| Schaltleistung | 3 W | |
| Schaltspannung (AC) | 175 V | |
| Schaltspannung (DC) | 175 V | |
| Schaltstrom | 250 mA | |
| Spulenspannung (DC) | 24 V | |
| Spulenwiderstand | 2 kΩ |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
