223513 | BACO

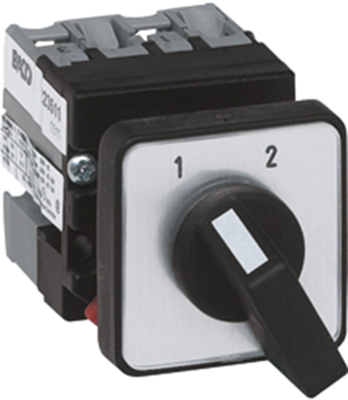

Cam switch, Rotary actuator, 3 pole, 10 A, 500 V, (L x W x H) 87 x 30 x 30 mm, front mounting, 223513

Order No.: 26G312
EAN: 4099889296464
MPN:
223513
223513
BACO
223513 BACO Circuit Breakers
Image may differ
Unit Price (€ / pc.)
36.1403 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
36.1403 €

Miniature cam switches, type Baco 223.

Bushing mount from the front; Degree of protection: IP 65. Breaking capacity. AC 21/AC 15: 10/2.5 A,. Operating temperatures: –20 to +50 °C. Certifications: CSA, UL, IEC/EN 60947.

CO switches without 0 position, type 223.

For front mounting, 16 and 22 mm.

Technical attributes (type, number of poles, dimension P): 223513, 3-pole, P 74 mm

Technical specifications
Actuator Rotary actuator
Width 30 mm
Permanent current 10 A
Height 30 mm
Isolation voltage 500 V
Length 87 mm
Assembly front mounting
Pin number 3 pole
Degree of protection (IP) IP65
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
