223522 | BACO

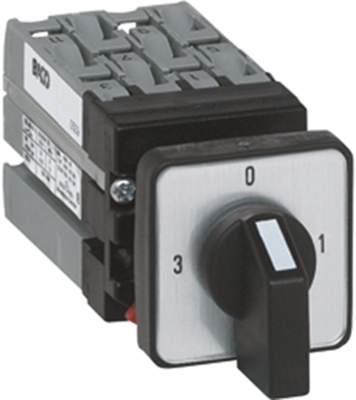

Cam switch, rotary actuator, 2 pole, 10 A, 500 V, (W x H) 30 x 30 mm, front mounting, 223522
Order No.: 26G326
EAN: 4099889296532
MPN:
223522
223522
Unit Price (€ / pc.)
36.1403 € *
Available: 0 pcs.
Leadtime: On Request **
Miniature cam switches, type Baco 223.
Bushing mount from the front; Degree of protection: IP 65. Breaking capacity. AC 21/AC 15: 10/2.5 A,. Operating temperatures: –20 to +50 °C. Certifications: CSA, UL, IEC/EN 60947.
3-step switches with 0 position, type 223.
For front mounting, 16 and 22 mm.
Technical attributes (type, number of poles, dimension P): 223522, double-pole, P 74 mm
Technical specifications
| Betätiger | Drehbetätiger | |
| Breite | 30 mm | |
| Dauerstrom | 10 A | |
| Höhe | 30 mm | |
| Isolationsspannung | 500 V | |
| Montage | Fronteinbau | |
| Polzahl | 2-polig | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
