ND02AX80 | BACO

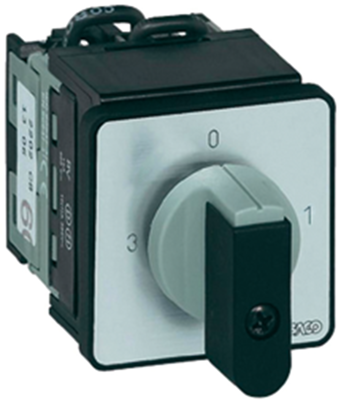

Cam switch, rotary actuator, 2 pole, 16 A, (L x W) 71 x 48 mm, front mounting, ND02AX80
Order No.: 26G356
EAN: 4099889296655
MPN:
ND02AX80
200502
Unit Price (€ / pc.)
40.6742 € *
Available: 0 pcs.
Leadtime: On Request **
Cam switches, series PR 12, type Baco NB../NC../ND.
22 mm bushing mount from the front. Breaking capacity; AC 21/AC 15: 16/6.0 A,. Operating temperatures: –20 to +70 °C. Certifications: CSA, UL, IEC/EN 60947.
3-step switches with 0 position, type ND.
Technical attributes (type, number of poles, dimension P): ND02AX80, double-pole, P 71 mm
Technical specifications
| Actuator | rotary actuator | |
| Width | 48 mm | |
| Permanent current | 16 A | |
| Length | 71 mm | |
| Assembly | front mounting | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
