LBX10510 | BACO

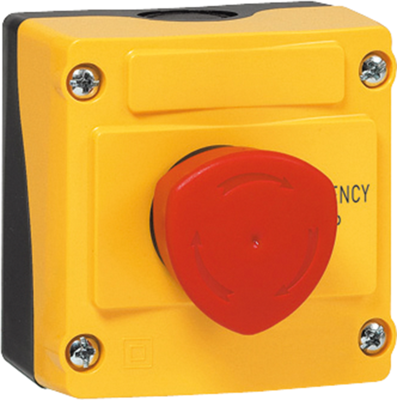

Emergency stop switch in the enclosure, 1 emergency stop pushbutton red, 1 Form B (N/C), latching, LBX10510
Unit Price (€ / pc.)
33.2605 € *
Available: 26 pcs.
Leadtime: On Request **
Total Price:
33.26 € *
Price list
Quantity
Price per unit*
1 pcs.
33.2605 €
5 pcs.
31.2613 €
15 pcs.
30.0594 €
50 pcs.
28.7385 €
150 pcs.
27.5366 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control stations with pushbuttons, type BACO LBX.
With one pushbutton, to EN-IEC 60947-5-1, with 2 pre-stamped knock-outs ISO 1620; Contacts: base mount with screw connections. Rated insulation voltage: 690 VAC. Rated surge voltage strength 6.0 kV, Continuous thermal current AC15/DC13: 10/2.5 A. Degree of protection: IP 66. Operating temperatures: –25 to +70 °C.
With one emergency-off switch.
Latching, rotary release
Technical attributes (type, contact, color, code): LBX10510, NC, red, EMERGENCY STOP
Technical specifications
| Version | 1 Not-Halt-Taster rot | |

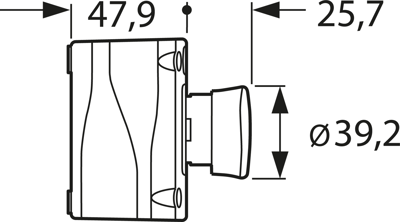

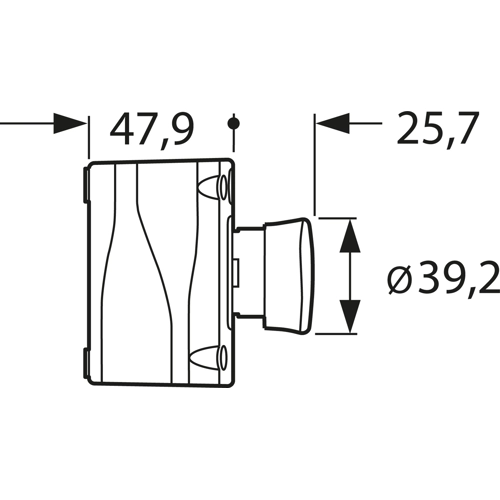

| Shell size | 74 x 74 x 47,9 mm | |
| Contact function | rastend | |
| Latching switching function | 1 Öffner | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
