LBX14201 | BACO

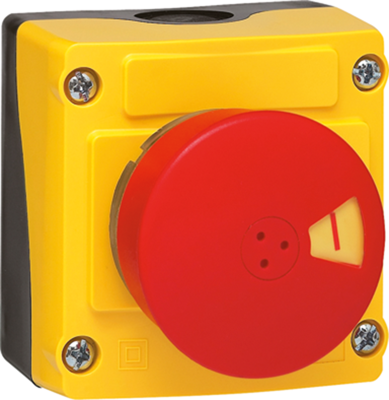

Emergency stop switch in the enclosure, 1 emergency stop pushbutton red, 1 Form B (N/C), latching, LBX14201
Unit Price (€ / pc.)
49.5635 € *
Available: 0 pcs.
Leadtime: On Request **
Control stations with pushbuttons, type BACO LBX.
With one pushbutton, to EN-IEC 60947-5-1, with 2 pre-stamped knock-outs ISO 1620; Contacts: base mount with screw connections. Rated insulation voltage: 690 VAC. Rated surge voltage strength 6.0 kV, Continuous thermal current AC15/DC13: 10/2.5 A. Degree of protection: IP 66. Operating temperatures: –25 to +70 °C.
With one EMERGENCY-OFF switch.
Latching, pulling release, tamper-proof to IEC 600947-5-5, EN 418, ISO 13850, status indication with yellow ring and window.
Technical attributes (type, contact, color, code): LBX14201, NC, red, STOP - I
Technical specifications
| Version | 1 emergency stop pushbutton red | |

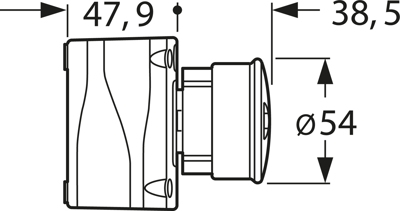

| Shell size | 74 x 74 x 47.9 mm | |
| Contact function | latching | |
| Latching switching function | 1 Form B (N/C) | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
