LBX30430 | BACO

Surface mount housing, 3 pushbutton green/red, 2 Form A (N/O) + 1 Form B (N/C), groping, LBX30430

Order No.: 12G6072
EAN: 4099889263244
MPN:
LBX30430
Series: LBX
BACO

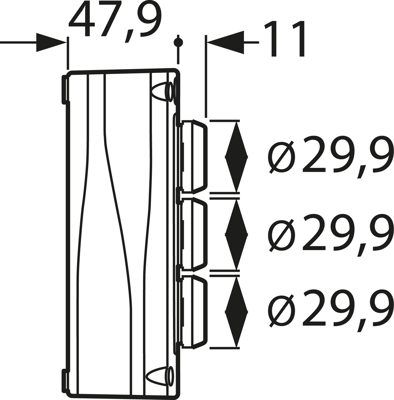

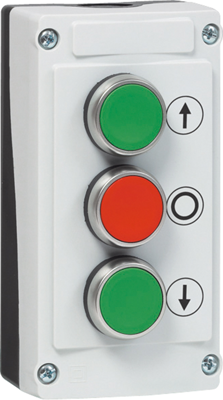

LBX30430 BACO Control Devices in Housings Image 1
LBX30430 BACO Control Devices in Housings Image 2
Image may differ
Unit Price (€ / pc.)
54.5377 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
54.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
54.5377 €

Control stations with pushbuttons, type BACO LBX.

With one pushbutton, to EN-IEC 60947-5-1, with 2 pre-stamped knock-outs ISO 1620; Contacts: base mount with screw connections. Rated insulation voltage: 690 VAC. Rated surge voltage strength 6.0 kV, Continuous thermal current AC15/DC13: 10/2.5 A. Degree of protection: IP 66. Operating temperatures: –25 to +70 °C.

With three pushbuttons.

ID up - O - down (as symbols)

Technical attributes (type, contact, color, code): LBX30430, 2 NO - 1 NC, green - red - green

Technical specifications
Version 3 pushbutton green/red
Shell size 125.5 x 74 x 58.9 mm
Contact function groping
Latching switching function 2 Form A (N/O) + 1 Form B (N/C)
Degree of protection (IP) IP66
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
